Navigating the Crisis Track Mobile App
Login
Your administrator will provide you with a username and password. If you already have access to the Crisis Track Desktop Console, you can also log into the Apple iOS, Android, or Windows mobile apps using the same credentials.
You've logged into the Crisis Track Mobile App.
Choose an Incident
The next step, after logging in, is to choose which Incident you will be working in. Tap the Incident you've been assigned.
Settings
On the Incident home screen, you can also choose to edit settings or logout. These options are located at the top of your screen.
The settings menu allows you to save maps for offline use. Use this function, if you expect that you be without internet connectivity but will need to use a map of an area.
Choose which type of map you would like to be able to view (Street, Satellite or Topo).
If you would like to download a map for the entire area within your boundary, click on the Standard download button. Due to technical limitations, Crisis Track can only download 100,000 map tiles, so the standard download will download map tiles for the entire area, but not zoomed in fully.
If you need the map to zoom in more, then click on the Advanced select button. This will show a screen where you can specify the area and scale to download the offline map.
Click on the Draw button. Tap on the map to draw the polygon around the area. Click on Save when the polygon is complete. Use the + and - buttons to zoom the map to the level that you would like to download.
Click on Download when you are satisfied with the area and scale. Now, when viewing a map somewhere in the app, the area you've saved will be available even if other areas can't load.
Select Collect Data
After choosing an incident, click the Collect Data button. This will initiate the team and task selection process so that you can collect data for assessments that has been assigned to you.
Choose Your Team
Next, you will choose the Team to which you belong. You may belong to more than one team so be sure to know which team you should currently be working on, as your team will dictate to which tasks you have access to.
Choose a Task
After choosing a team your next step is to choose the task you will begin working. Tasks contain entries, which may be structures requiring assessment, road closures that need to be documented, or other activities. Tasks will likely be logically created to encompass an area or the type of work to be done. If you need to create a new, blank task, then you can do so by tapping the hamburger button (three horizontal lines) in the top right corner of your device. For most users your tasks have already been created. Once you select a task, you will see a screen with Start, Stop, and View buttons. Along the bottom panel, you will see Personnel and Equipment tabs. Here, you can edit who is assigned to the team as well as what equipment is assigned to the team.
Clock In
Once you've chosen a task and made any necessary changes to your personnel and equipment lists, it's time to clock in.
Note: This is a method to track hours that personnel and equipment that were activated as part of a recovery effort. Clicking the Start button will begin tracking time for your team, the equipment assigned to that team and GPS tracking of your device. When back on this screen you should tap Stop to clock out after finishing work for that task. If you will be working on a different task you will clock in to that task in the same way.
Clicking Start or Continue (if you're on this screen but already clocked in) will send you to the next screen.
Click on View, if you would prefer to view the Entries in the task without starting time and GPS tracking.
Exploring a Task
You've chosen an incident, picked your team and clocked into a task. Great job! Here's where the real work begins...
There are several things to do inside of a Task. The various screens are accessed by tapping one of the three tabs on the bottom of the screen. The first screen you will see is the list view of the entries.
Task: Entries
The Entries tab displays a scrollable list of all the entries assigned to this task.
If the Upload All button is enabled that means one or more of your entries are saved to the device. Once you're in a location with reliable signal, either from Cellular or WiFi connectivity, tap Upload All to synchronize all of your changes for this task with the Desktop Console. Clicking any of the Entries in the list will take you to that entry's details.

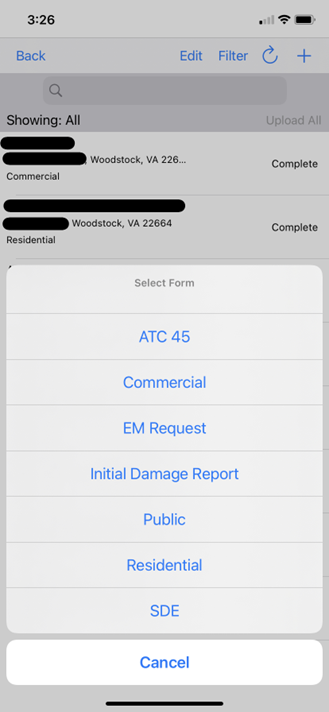

Tapping the + button allows you to create a blank entry using any of the forms that have been enabled by your administrator.

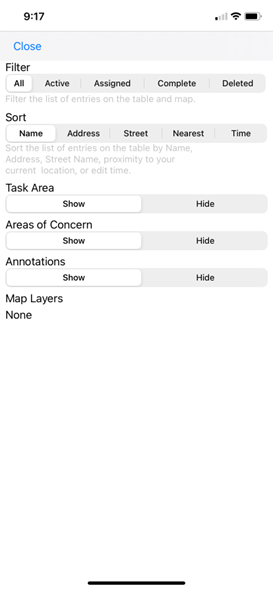

You can filter how entries are displayed using the Filter menu button above the list of entries. In the Filter menu, you can also show/hide the Task Area, Areas of Concern, and Annotations.
In our effort to improve the workflows for Substantial Damage Estimations, we now enable Esri Map Services, such as the NFIP Flood Hazards layer, to be overlaid on the maps of the mobile application. This will allow you to quickly see which structures are inside or outside the flood zone. You can toggle the NFIP Map Layer on/off in the Filter menu. You can also copy an entry, move an entry to a different task, or delete an entry on the mobile application by tapping the Edit button.
You may want to copy an entry, for instance, if you receive a Resident Self Report and want to turn it into a damage assessment. Selecting the Copy button, will allow you to select a damage assessment entry form and copy the Resident Self Report entry information into the a damage assessment entry.
Additionally, when trying to add an address location for an entry, you can search for addresses or filter address locations by structure type.
To search for an address, press the + button, select a blank entry form and press the Locate button. Begin typing in an address in the search box and select the address from the list.
To filter address locations by structure type, press the + button, select a blank entry form and press the Locate button. Press the Type field and look for a structure type to select from the list.
Once you select a structure type, the Type field will update with your selection and your search results will show locations nearby with the selected structure type.

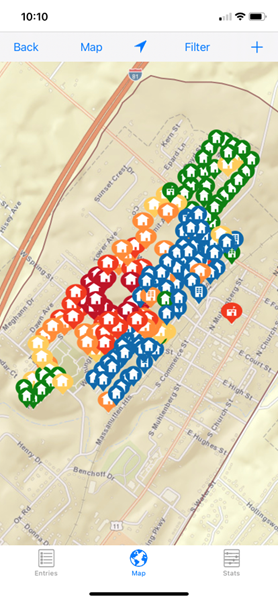

Task: Map
The Map tab displays the entries assigned to this task on a map. You can drag the map and zoom in/out using normal "pinch" actions.
Clicking on a dot will display a popup with the name and address for that entry. Clicking the encircled i will take you to that entry's details.
Clicking the map button in the top panel will allow you to change the base map type from the default Street to Satellite or Topo.
Exploring an Entry
Clicking an Entry inside of a task using either the list view or the map view reveals the details of that entry.
There are several things to do inside of an Entry. The various screens are accessed by tapping one of the four tabs. The first tab you will see is the form. Be sure to visit the Save tab to save any changes.
Entry: Form
The Form tab displays the fields for the form chosen for this type of entry.
The appearance of the form depends on the type of entry you are viewing. There are several types of forms available.
Fill in the details of the form. Some information may be pre-populated by data from the Crisis Track system, such as address.
On the Debris, Protective Measures, and Public forms, you can add site perimeters or debris areas by walking to the four corners of the area and pressing the Add Corner button at each corner.
Entry: Map
The Map tab displays the location of this entry. This can help you to understand its physical location when in the field. You can drag the map and zoom in/out using normal "pinch" actions.
If the location of the entry is incorrect or missing, it can be set by clicking on the pencil button, and then clicking on the correct location on the map. Clicking the pencil button a second time will save the location.
On the Debris, Public, and Protective Measures entry form, you can now use a rectangle tool to draw a perimeter around a site or a debris area. After opening the entry form, switch to the Map view and press the pen and pad button. Press the screen to place a dot, press on 3 additional spots to draw your perimeter or debris area. Once your perimeter or debris area is complete, press the pen and pad button again to save the area. The saved area will appear as a grey rectangle. When you switch back to the form view, you will see the coordinates of all four points.
Entry: Photos
The Photos tab allows you to take photos related to this entry in order to document your assessment.
Note: as the app loads photos previously taken, it may take a few seconds to appear.
Tapping the camera icon takes you to your device's camera function. Take a photo as you normally would and tap Use Photo to use the photo you've taken or Retake to take a different picture.
Tapping the " Camera Roll" icon takes you to your device's photo storage. From there you can choose a photo to upload to the entry.
Tapping the Edit button allows you to delete any photos. Tap the photo(s) you would like to delete. Selected photos will be highlighted in red and the Delete button will become active. Once you're sure you would like to remove these photos, press the Delete button and then select Done to return back to your photo list.
Entry: Save
The Save tab summarizes the entry. It shows you the data entered into the form and the photos attached.
If anything needs to be corrected, do so using the tabs.
If there is currently either cell or Wifi connectivity, you can click the Save/Upload button to sync.
You can click the Save to Device button to save any entry to the device. Later, when in the presence of connectivity access the mobile app again and either click Save then Save/Upload inside of an individual entry or click Upload All on the Task List View Screen to sync new data.
Clock Out
Once you've completed assessing all of the entries in your task, close out of the entries list and click Stop to clock out.
